DELFAR ELEVATOR CO., LTD.

The enterprise has passed IS09001 International Quality System Certification，ISO14001 Environment Management System Certification, OHSAS18001 Occupational Health Safety Management System Certification.

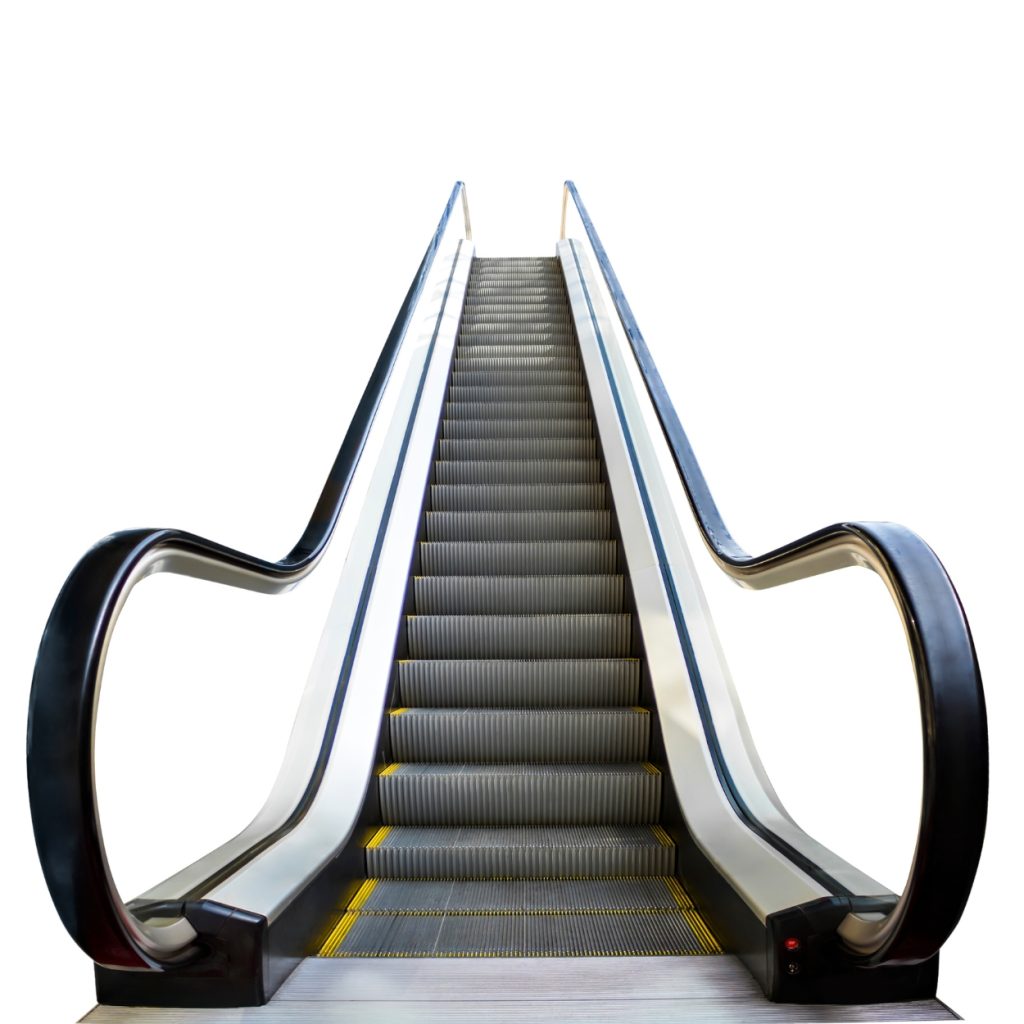

Escalators & Moving Walkways

High-capacity, continuous passenger transport solutions for shopping centers, airports, and public transit hubs.

  • Escalators: Available in standard 30-degree and 35-degree inclines with step widths of 800mm or 1000mm.

  • Moving Walkways: Offered in flat (0-degree) or inclined (up to 12-degree) configurations, ideal for passengers with luggage or shopping carts.

  • Safety Features: Equipped with anti-pinch devices, drive-chain breaking protection, and clear running direction indicators.

  • Efficiency: Integrated VVVF (Variable Voltage Variable Frequency) sensors allow the units to enter a low-energy standby mode when no passengers are detected.

Escalators

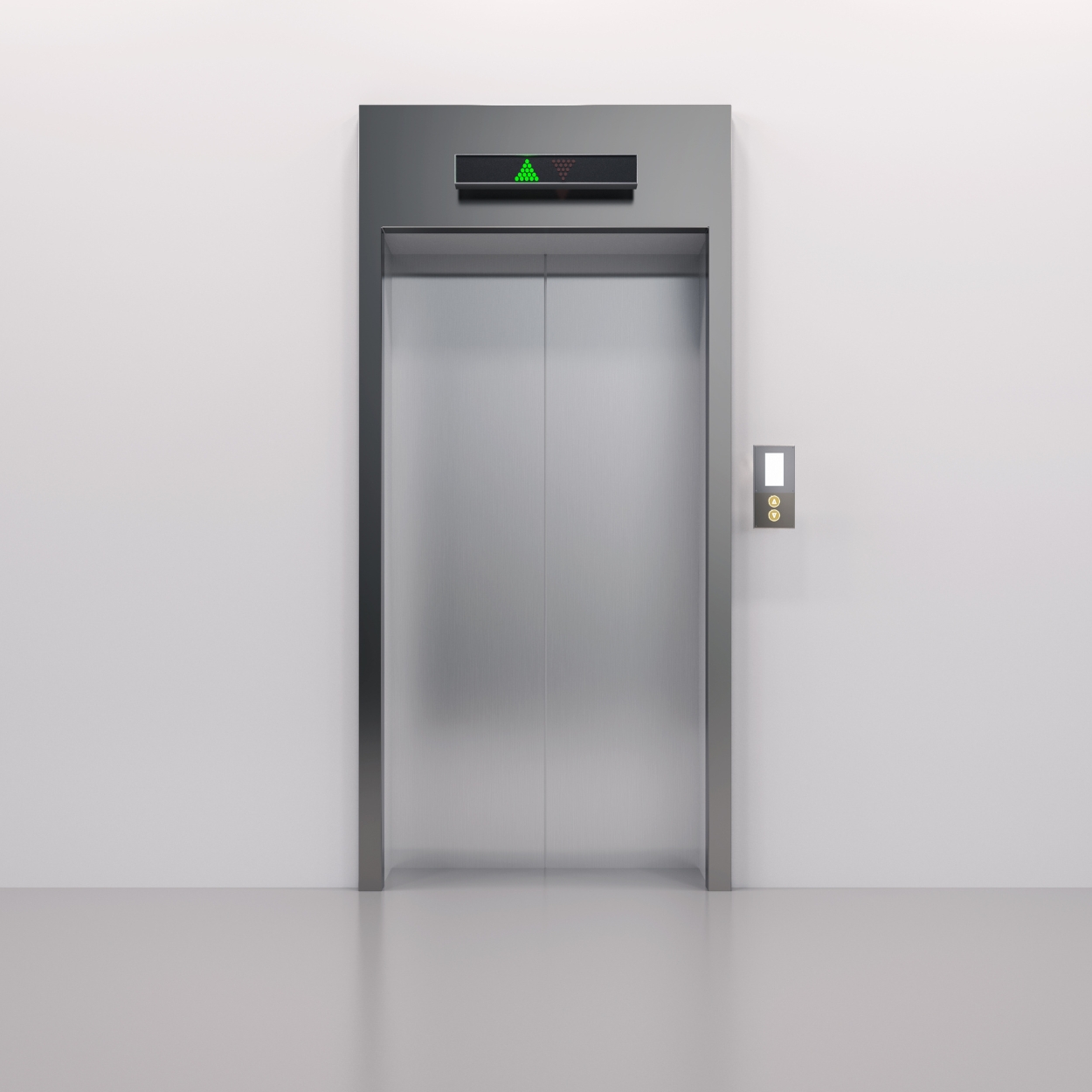

Passenger Elevators

Designed for high-traffic commercial applications like office towers, hotels, and high-rise residential buildings.

  • Technology: Available in Small Machine Room (SMR) and Machine Room-Less (MRL) configurations to save architectural space.

  • Performance: Utilizes permanent magnet synchronous gearless traction motors, delivering up to 30% energy savings compared to traditional systems.

  • Safety & Control: Features VVVF (Variable Voltage Variable Frequency) drives for smooth acceleration, light curtain protection, fire emergency return, and overspeed protection.

  • Aesthetics: Highly customizable cabins featuring hairline stainless steel, Ti-gold mirror etching, and luxury wood finishes.

Passenger Elevator

Villa (Home) Elevators

Engineered specifically for private residences and luxury villas, prioritizing quiet operation, elegance, and minimal architectural footprint.

  • Capacity & Speed: Standard load capacities range from 320kg to 400kg, operating at a comfortable 0.4 m/s.

  • Space Requirements: Designed for tight spaces with minimal pit depth requirements (as low as 600mm) and compact shaft dimensions.

  • Power Efficiency: Operates on standard 220V single-phase power, making it energy-efficient and easy to integrate into household grids.

  • Design: Offers premium residential finishes including rose gold stainless steel and custom wood panelling to match home interiors.

Villa Elevator

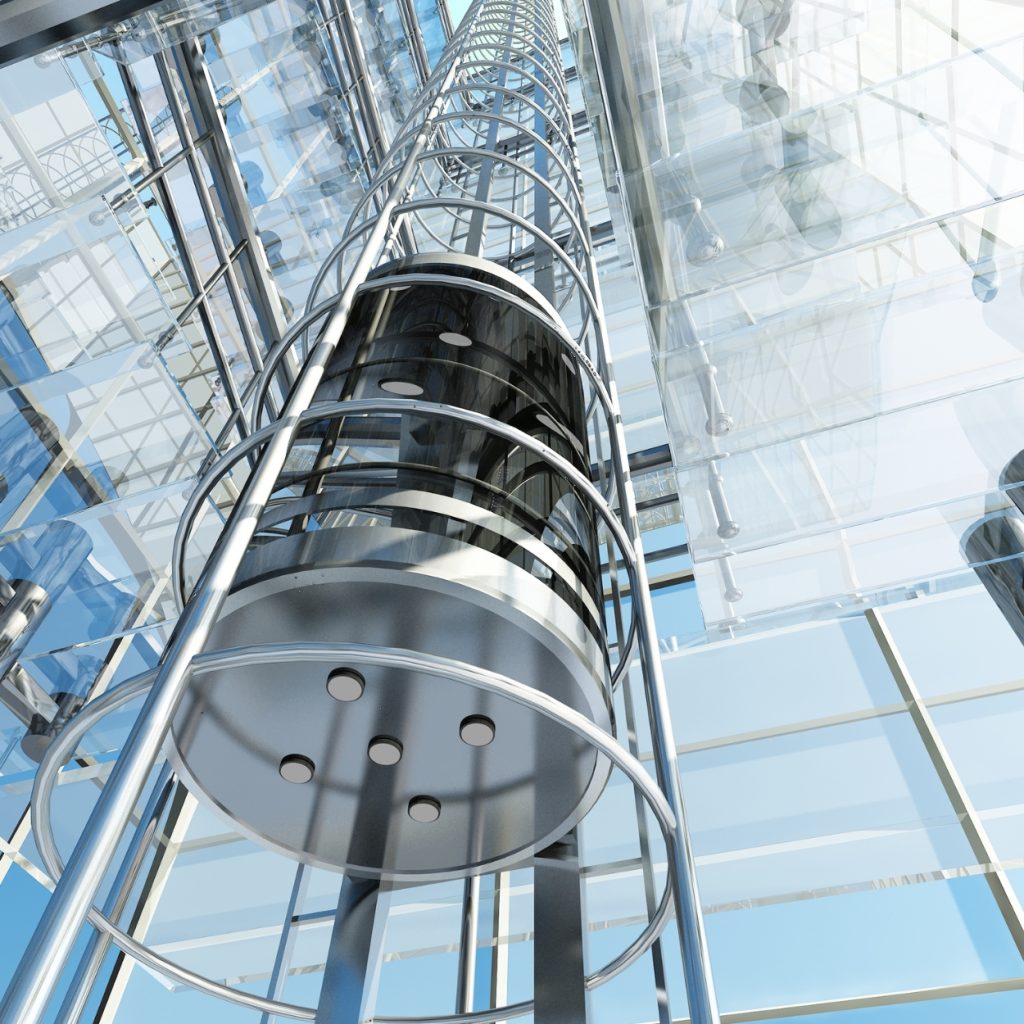

Sightseeing (Observation) Elevators

Panoramic elevators designed to provide architectural beauty and stunning visual experiences for passengers in shopping malls, hotels, and scenic buildings.

  • Cabin Shapes: Available in semi-circular, square, octagonal, and three-sided viewing configurations.

  • Materials: Constructed with heavy-duty glue-compressed safety glass and stainless steel framing (Ti-gold or hairline options).

  • Interiors: Upgraded aesthetics include acrylic lighting ceilings, PVC or optional marble flooring, and customized glass doors.

  • Ride Quality: Utilizes VVVF digital frequency conversion to ensure a completely smooth ride so passengers can comfortably enjoy the view.

Sightseeing Elevator

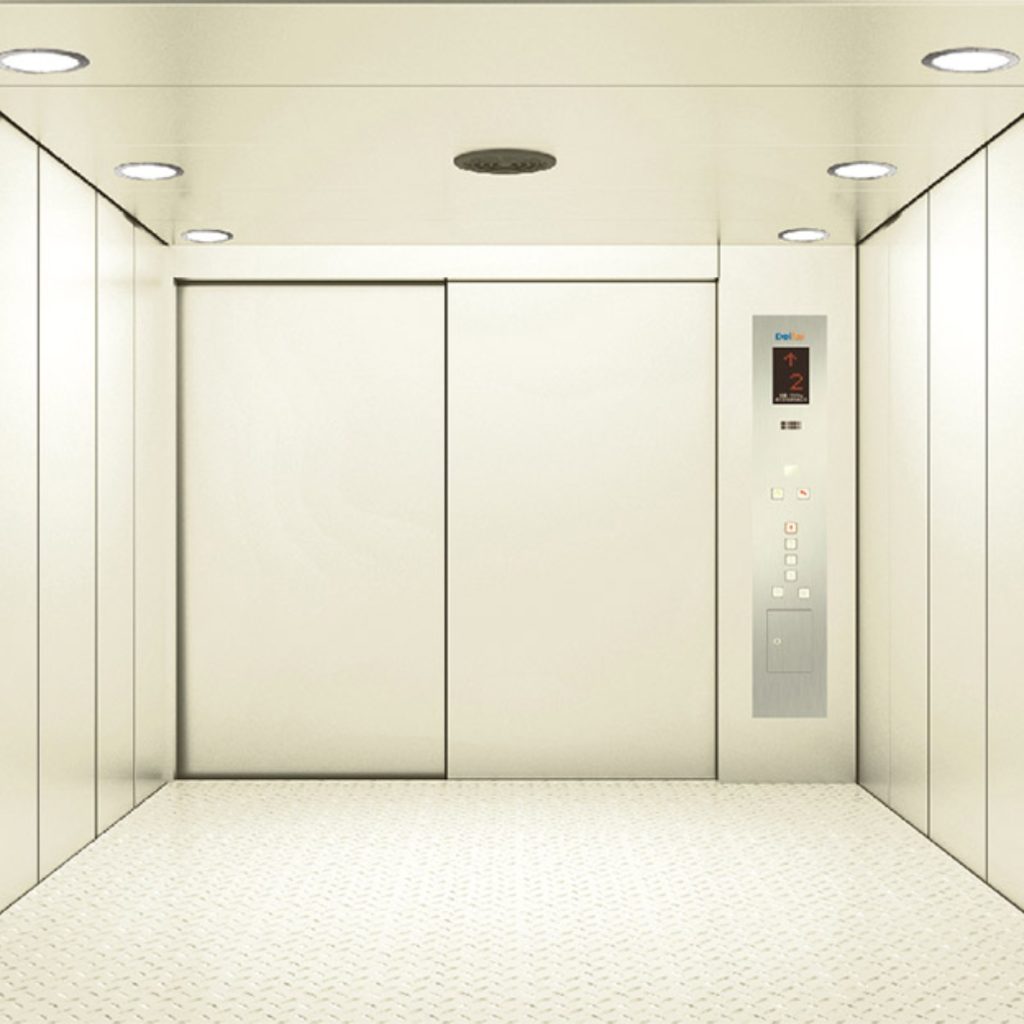

Freight Elevators

Heavy-duty, highly durable elevators engineered to handle substantial cargo, forklifts, and industrial logistics for warehouses and factories.

  • Capacity: Built for extreme loads, with standard capacities ranging from 1000kg up to 5000kg.

  • Dimensions: Massive cabin sizes (e.g., 2500mm x 3500mm) with wide, 4-panel center-opening doors (up to 2500mm wide) to accommodate large pallets and equipment.

  • Speed: Geared for safety and stability over speed, typically running between 0.25 m/s and 0.5 m/s.

  • Durability: Finished in rugged painted steel with robust guide rails, heavy-duty chains, and deceleration devices to withstand heavy daily abuse.

Freight Elevator

Medical (Bed / Stretcher) Elevators

Specialized transportation for healthcare facilities, designed to safely and comfortably move patients, stretchers, and sensitive medical equipment.

  • Dimensions: Deep, elongated cabins (typically 1400mm wide x 2400mm deep) with wide doors (1100mm+) to allow seamless entry and exit of hospital beds.

  • Capacity: Heavy lifting capacities ranging from 1600kg (approx. 21 persons) up to 2500kg+ to hold medical teams and heavy machinery simultaneously.

  • Patient Comfort: Features ultra-precise leveling technology to prevent jolting during bed transfers, and highly insulated cabins for low-noise operation.

  • Hygiene: Built with easy-to-clean, antimicrobial surfaces and optimized ventilation systems to uphold strict hospital sanitary standards.

Medical Elevator
